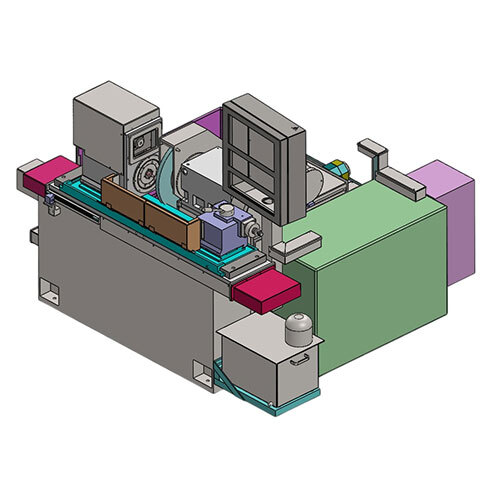

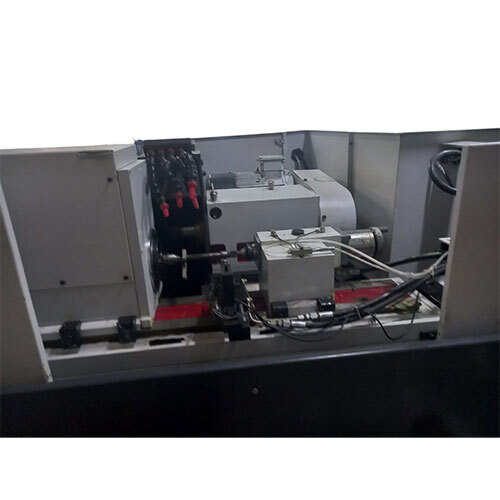

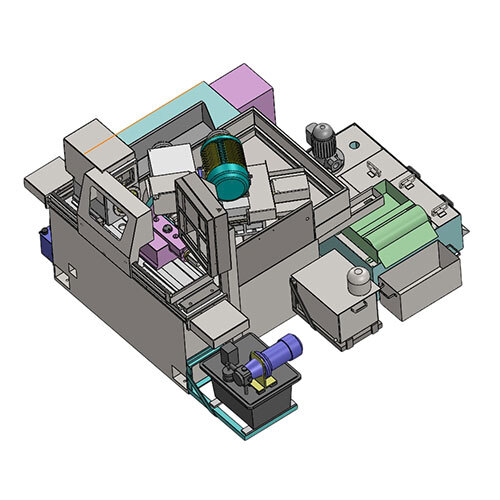

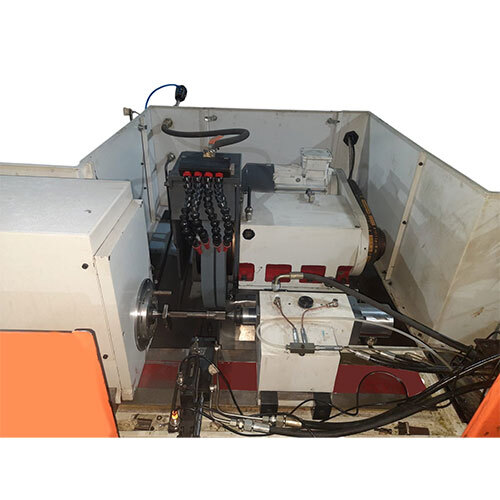

OD CNC Grinder Smart Grind Machine SMART Grind-125 CNC

Send Inquiry

Request To Call Back

OD CNC Grinder Smart Grind Machine SMART Grind-125 CNC

Get a Price/Quote

MOQ : 1 Unit

OD CNC Grinder Smart Grind Machine SMART Grind-125 CNC Specification

Model
SMART Grind-125 CNC

Rotation
Spindle: CW/CCW selectable

Product Type
OD CNC Grinder

General Use
Cylindrical/OD grinding operations

Material
Cast Iron/Steel (Machine Structure)

Type
SMART Grind-125 CNC

Capacity
Up to 125 mm diameter

Weight (kg)
3200 kg (approx.)

Computerized
Yes

Automatic
Yes

CNC Or Not
CNC

Control System
Siemens CNC / Fanuc CNC (as per buyer requirement)

Table Size
1100 mm x 180 mm

Table Slide Way
V & Flat guideways

Magnetic Chuck Size
125 mm

Grinding Wheel Size
400 mm x 40 mm x 127 mm

Grinding Wheel Speed
1500 RPM

Grinding Length
300 mm

Floor Space
2550 mm x 1800 mm

Fuel Tank Capacity
35 L (Hydraulic Oil Tank)

Spindle Speed
2500 RPM (Work Head)

Power
10 HP

Voltage
415 V

Dimension (L*W*H)
2550 mm x 1800 mm x 1650 mm

Feature
High Precision, Fully Programmable, User-friendly Interface

Color
Machine standard color (Grey/White combination)

Max Job Weight
60 kg (with center)

Lubrication
Automatic centralized lubrication

Display
7" Touch Screen HMI

Repeatability
0.002 mm

Machine Bed
Heavy duty, ribbed casting for vibration damping

Hydraulic System
Integral, low-noise pump

Software Upgradable
Yes

Safety Features
Overload protection, Emergency stop

Coolant System
Standard with Recirculation Pump

Input Power Supply
3 Phase, 50 Hz

Position Accuracy
0.003 mm

Work Head Taper
MT-4

Standard Accessories
Wheel Dresser, Work Rest, Chuck Flange, Machine Lamp

Programming
G-Code, Conversational programming

Thru Coolant Option
Available

OD CNC Grinder Smart Grind Machine SMART Grind-125 CNC Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Against Delivery (CAD), Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About OD CNC Grinder Smart Grind Machine SMART Grind-125 CNC

Experience the prodigious precision of the SMART Grind-125 CNC, a hot-selling, select OD CNC Grinder now at a reduced price. Designed for grandiose performance, this exceptional machine features a heavy-duty, ribbed cast iron bed for superior vibration damping, automatic centralized lubrication, and a low-noise integral hydraulic system. With a cutting-edge 7-inch Touch Screen HMI, Siemens or Fanuc CNC control, and position accuracy of 0.003 mm, it caters to exacting cylindrical and OD grinding tasks up to 125 mm in diameter. Fully programmable, safe, and software-upgradable, the SMART Grind-125 CNC is engineered for reliability and user-friendly excellence.

Superior Material and Versatile Application

Crafted from durable cast iron and reinforced steel, the SMART Grind-125 CNC demonstrates remarkable structural integrity and vibration resistance. This CNC grinder is ideal for industrial sites demanding high-precision cylindrical and OD grinding operations. Frequently utilized as a primary machine for both medium and large-scale production, it excels in precision engineering sectors. The SMART Grind-125 CNC is engineered for reliability, accuracy, and versatility, making it a select choice for manufacturers aiming for exceptional performance and consistency.

Efficient Delivery and Trusted Certifications

SMART Grind-125 CNC ships from Indian manufacturing hubs, offering secure packaging and reliable transport services to ensure safe delivery at your site. FOB port options are as per client convenience and prevailing trade regulations. Sample policies are available on request to facilitate demonstration and evaluation. Each unit arrives with necessary certifications for quality assurance, aligning with industry standards for safety and operational excellence. Our streamlined logistics guarantee prompt and efficient service, from order processing to final delivery.

FAQ's of OD CNC Grinder Smart Grind Machine SMART Grind-125 CNC:

Q: How does the SMART Grind-125 CNC ensure exceptional grinding precision?

A: The SMART Grind-125 CNC features a heavy-duty, ribbed cast iron bed for vibration damping, automatic centralized lubrication, and a precise positioning system guaranteeing an accuracy of 0.003 mm and repeatability of 0.002 mm, ensuring high-precision grinding results.

Q: What are the key benefits of using the SMART Grind-125 CNC?

A: This machine offers fully programmable, user-friendly operation, high capacity (up to 125 mm diameter), and robust safety features such as overload protection and emergency stop. Its grandiose performance enhances productivity and consistency in demanding grinding applications.

Q: Where can the SMART Grind-125 CNC be applied?

A: It is ideal for use in manufacturing units, tool rooms, precision engineering workshops, and industrial plants requiring cylindrical and OD grinding with high repeatability and consistent quality.

Q: What is included in the standard accessories with the SMART Grind-125 CNC?

A: Standard accessories comprise a wheel dresser, work rest, chuck flange, and machine lamp, ensuring a comprehensive grinding setup ready for immediate operation.

Q: How is delivery and after-sales support managed for the SMART Grind-125 CNC?

A: The machine is carefully packaged and shipped using reliable transport services. Delivery leads times depend on location and order volume, with after-sales support provided for installation, operation, and maintenance, as well as software upgrades.

Q: What certifications does the machine come with?

A: The SMART Grind-125 CNC comes with quality and safety certifications, complying with industry standards and regulations for export and domestic use.
