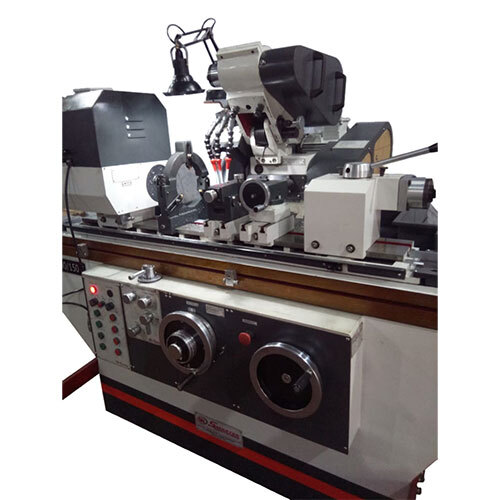

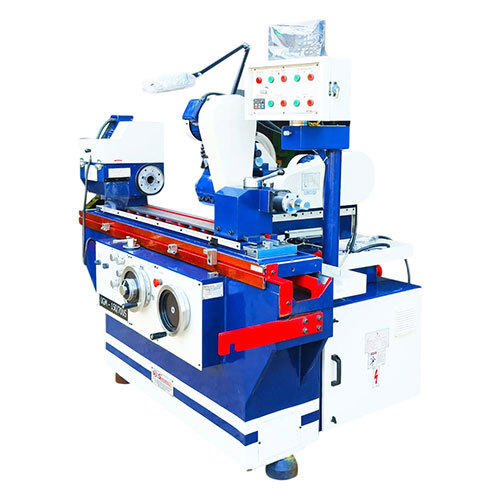

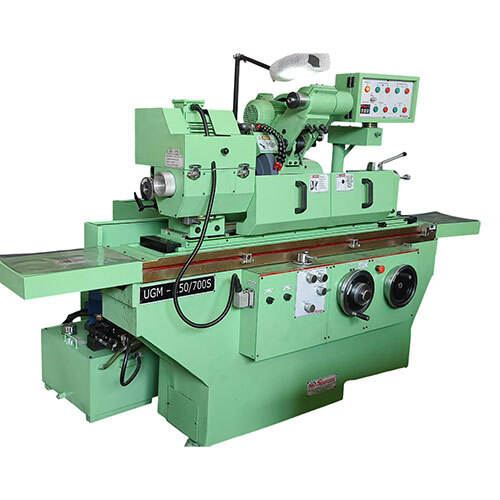

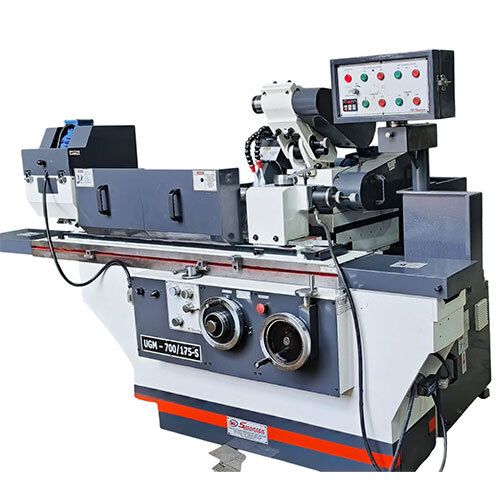

CG Hydraulic Machine UGM-800

Get a Price/Quote

MOQ : 1 Unit

CG Hydraulic Machine UGM-800 Specification

Product Type
Hydraulic Surface Grinding Machine

General Use
Industrial, Surface Grinding

Material
Cast Iron, Mild Steel

Type
Universal

Capacity
800 mm

Weight (kg)
2280 kg

Computerized
No

Automatic
Yes

Control System
Manual / Semi-automatic

Drive Type
Hydraulic

Grinding Diameter
250 mm

Grinding Length
800 mm

Spindle Speed
2800 RPM

Grinding Wheel Size
200 x 13 x 31.75 mm

Voltage
440 Volt

Dimension (L*W*H)
2600 x 1700 x 1700 mm

Feature
High Precision, Robust Design, Smooth Operation

Color
Blue / Light Gray

Down Feed Motor
0.1 HP

Working Pressure
30 - 45 kg/cm2

Power Required
3 HP

Vertical Feed Graduation
0.01 mm

Table Speed
5 - 25 m/min

Work Table Size
400 x 800 mm

Hydraulic Motor
2 HP

Maximum Table Travel
900 mm

Cross Feed Graduation
0.02 mm

Coolant System
Yes, Inbuilt

Lubrication
Centralized Automatic

Wheel Head Motor
2 HP

CG Hydraulic Machine UGM-800 Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About CG Hydraulic Machine UGM-800

Spotlight on the CG Hydraulic Machine UGM-800! This hot-selling, top-ranking surface grinder boasts a ravishing, polished finish and is engineered for supreme accuracy and reliability. With a maximum table travel of 900 mm, a large work table (400 x 800 mm), and grinding capability up to 800 mm, it's perfect for rigorous industrial applications. Enjoy smooth operation, robust construction, and advanced features like centralized automatic lubrication and inbuilt coolant systems. Try now and experience unmatched productivity with the UGM-800-a universally acclaimed, high-precision machine!

Features & Applications: Precision Engineered for Demanding Users

CG Hydraulic Machine UGM-800 is meticulously designed for industrial surface grinding, excelling with its smooth operation and automated systems. Crafted from premium cast iron and mild steel, this universal machine suits workshops, tool rooms, and heavy manufacturing. Key features include a hydraulic drive, manual or semi-automatic control, high spindle speed, and robust weight for stability. Perfect for material finishing and precision component production, it's a reliable companion for professional machinists and engineers alike.

Certifications, Sample Policy & Delivery: Seamless Acquisition Process

The CG Hydraulic Machine UGM-800 comes certified for high precision and robust design, ensuring trust and dependability. Sample requests may involve a nominal charge or outlay depending on project requirements. Once your order is placed, expect the machine to be handed over within an industry-standard delivery time, ensuring timely project fulfillment. Our streamlined process is designed to provide you with rapid access to this top-tier hydraulic machine, maximizing both value and efficiency.

FAQ's of CG Hydraulic Machine UGM-800:

Q: How does the CG Hydraulic Machine UGM-800 ensure high precision during surface grinding?

A: The UGM-800 is equipped with finely graduated cross and vertical feed controls (0.02 mm and 0.01 mm, respectively), a robust hydraulic system, and centralized automatic lubrication, all working together to deliver consistently high-precision surface grinding results.

Q: What industries can benefit from using this hydraulic grinding machine?

A: This machine is ideally suited for industries such as tool-making, automotive, heavy manufacturing, and metalworking, where reliable and polished surface finishes on large workpieces are essential.

Q: When will the CG Hydraulic Machine UGM-800 be handed over after ordering?

A: Delivery time for the UGM-800 is subject to order volume and customization requirements, but we strive to ensure your machine is handed over within the standard industrial lead times to keep your operations on schedule.

Q: Where is the CG Hydraulic Machine UGM-800 manufactured and supplied from?

A: The UGM-800 is manufactured and supplied from India by reputed and experienced manufacturers committed to quality and innovation in industrial machinery.

Q: What are the main benefits of the inbuilt coolant system and centralized lubrication?

A: The inbuilt coolant system prevents overheating during prolonged grinding, while centralized automatic lubrication reduces maintenance efforts and enhances machine lifespan by maintaining optimal smoothness and operational efficiency.

Q: How can I request a sample or quotation for the UGM-800?

A: You can request a sample or quotation through the supplier's official channels. Depending on the policy, a nominal charge or outlay may be involved for samples, ensuring you get a thorough evaluation of the machine before full-scale investment.
